• 6AV6642-0DC01-1AX1


Artikelnummer 6AV6642-0DC01-1AX1

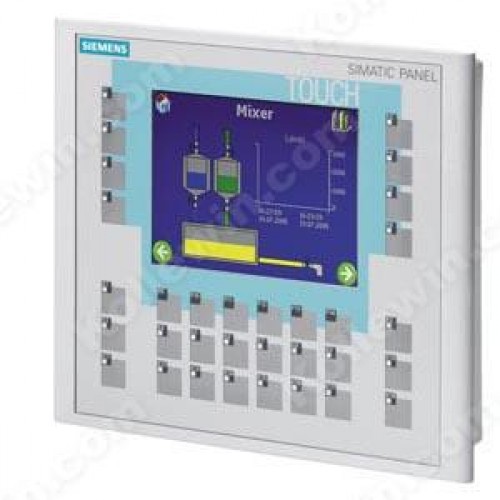

SIMATIC OP177B 6" DP BLUE MODE STN DISPLAY TOUCH AND KEYS MPI-/PROFIBUS-DP PROTOCOL RS485-/RS422-/USB- INTERFACE PRINTER INTERFACE SLOT FOR MM-CARD CONFIGURABLE WITH WINCC FLEXIBLE 2005 ******************************* THIS PRODUCT IS NO LONGER AVAILABLE FROM OCT. 1ST, 2014. INFORMATION ABOUT SUCCESSOR SEE SIMATIC UPDATE ID: 62977695 FOR FURTHER QUESTIONS PLEASE APPROACH YOUR SIEMENS CONTACT PERSON.
General information
Customer-specific configuration Yes
Display
Design of display STN
Screen diagonal 5.7 in
Size 5.7" (120 mm x 90 mm)
Display type STN, 4 blue levels
Number of grayscales 4
Color type Blue levels
Resolution (pixels)
● Horizontal image resolution 320
● Vertical image resolution 240
● Resolution (WxH in pixel) 320 x 240
Backlighting
● MTBF backlighting (at 25 °C) 50 000 h
Control elements
Control elements Membrane keyboard
Operating options Keys and Touch
Function keys, programmable 32 function keys, 26 with LEDs
Connection for mouse/keyboard/barcode reader USB / USB / USB
Keyboard
● freely inscribable membrane keys Yes
● Number of function keys with LEDs 26
— Multi-key operation Yes
● System keys Yes
— Number of configurable system keys 32
● Numeric/alphabetical input Yes / Yes
— hexadecimal keyboard Yes
● Multi-key operation Yes
Supply voltage
Type of supply voltage DC
Input current
Rated current 0.24 A
Inrush current A²s 0.5 A²·s
Processor
Processor ARM, 200 MHz
Memory
Usable memory for user data 2 048 kbyte
Time of day
Clock
● Type Hardware clock, synchronizable, no battery backup
● Hardware clock (real-time clock) No
● Software clock Yes
● Battery-backed No
● Synchronizable Yes
Interfaces
Interfaces RS232 optional, 1 x RS422, 1 x RS485 (max. 12 Mbit/s)
Number of RS 485 interfaces 1
● Transmission rate, max. 12 Mbit/s
USB port 1 x USB
PC card slot No
CF card slot No
Multimedia card/SD card slot combined, as of E version 016 in conjunction with WinCC flexible 2008 SP1
Special interfaces No
Industrial Ethernet
● Industrial Ethernet interface No
● Industrial Ethernet status LED 0
Protocols
Protocols (terminal link)
● Sm@rtService Yes
Degree and class of protection
Front IP65, NEMA 4x, NEMA 12 (when installed)
IP (at the front) IP65
IP (rear) IP20
Standards, approvals, certificates
Certifications CE, GL, ABS, BV, DNV, LRS, FM Class I Div. 2, UL, CSA, cULus, EX Zone 2, EX Zone 22, C-TICK, NEMA 4x, NEMA 12
cULus Yes
EAC (formerly Gost-R) No
Suitable for safety functions No
Marine approval
● Germanischer Lloyd (GL) Yes
● American Bureau of Shipping (ABS) Yes
● Bureau Veritas (BV) Yes
● Det Norske Veritas (DNV) Yes
● Lloyds Register of Shipping (LRS) Yes
● Polski Rejestr Statkow (PRS) No
Use in hazardous areas
● EX zone 2 Yes
● EX zone 22 Yes
● FM Class I Division 2 Yes
Ambient conditions
Mounting position vertical
maximum permissible angle of inclination without external ventilation +/- 35 °
Storage/transport temperature
● Transport, storage -20 °C to +60 °C
Relative humidity
● Operation, max. 90 %
Operating systems
Operating system Windows CE
Configuration
Message indicator Yes
With alarm logging system (incl. buffer and acknowledgment) Yes
Process value display (output) Yes
Process value default (input) possible Yes
Recipe administration Yes
Configuration software
● STEP 7 Basic (TIA Portal) No
● STEP 7 Professional (TIA Portal) No
● WinCC flexible Compact Yes
● WinCC flexible Standard Yes
● WinCC flexible Advanced Yes
● WinCC Basic (TIA Portal) No
● WinCC Comfort (TIA Portal) Yes
● WinCC Advanced (TIA Portal) Yes
● WinCC Professional (TIA Portal) Yes
● Configuration tool WinCC flexible Compact Version 2005 or higher (to be ordered separately)
● 2nd configuration kit WinCC flexible Compact
— Version Version 2005
— Configuration tool WinCC flexible
— Type Compact
Languages
Online languages
● Number of online/runtime languages 5
Languages
● Languages per project 32
Functionality under WinCC (TIA Portal)
Libraries Yes
Task planner Yes
Help system Yes
● Number of characters per info text 70
Message system
● Number of alarm classes 32
● Number of messages 2 000
● Bit messages Yes
● Analog messages Yes
● Number of bit messages 2 000
● Number of analog messages 50
● Telegram message procedure Alarm S No
● System messages HMI Yes
● System messages PLC Yes
● System messages, other (SIMATIC S7, Sinumerik, Simotion, etc.) No
● Message length (in characters) 80
● Lines 1
● Number of process values per message 8
● Acknowledgment groups 99
● Message indicator Yes
● Acoustic feedback No
● First/last value Yes
Recipe administration
● Number of recipes 100
● Data records per recipe 200
● Entries per data record 200
● Recipe memory 32 KB integrated Flash, expandable
Variables
● Number of variables per device 1 000
● Number of variables per screen 50
● Number of variables 1 000
● Initial values 1 000
● Limit values Yes
● Multiplexing Yes
● Structs No
● Type Date & Time 1 000
Images
● Number of configurable images 500
● Permanent window/default Yes
● Start screen configurable Yes
● Image selection by PLC Yes
● Image number in the PLC Yes
Image objects
● Text objects 2,500 text elements
● Fields per image 50
● Date/time fields 30
● Index of screen context No
● Return Yes
● Graphics object Bit maps, icons, icon (full-screen), vector graphics
— Icons 500
— Icon (full screen) 50
Complex image objects
● Status/control With SIMATIC S7
● dynamic objects Diagrams, bar graphs, sliders, analog display, invisible buttons
— Number of objects per project 500
— Number per image 5
● Methods Trend
● Limit value lines Yes
● Number of bars per chart 5
● Limit value lines Yes
● alphanumeric fields 1 000
● alphanumeric fields per image 100
● numerical fields 1 000
● numerical fields per image 100
● Password errors 1 000
● Number of slides per image 0
● Number of analog indicators per image 0
● Number of visible switches per project 1 000
● visible switches per image 100
● hidden switches per image 100
● Number of status switches per project 1 000
● Button status switches per image 100
● Number of selector switches per project 1 000
● Selector switches per image 100
● Number of decade switches per project 0
● Decade switches per image 0
● Number of signal lamps per project 1 000
● Signal lamps per image 100
Attributes for dynamic objects
● Color change Yes
● X/Y movement Yes
● Hide Yes
● Angle of turn No
Lists
● Number of text lists per project 300
● Number of text lists per image 10
● Number of entries per text list 30
● Number of graphics lists per project 100
● Number of graphic lists per image 10
● Number of entries per graphics list 30
Security
● Number of user groups 50
● Number of user rights 32
● Password export/import Yes
Data carrier support
● PC card No
● CF card No
Logging through printer
● Recording/Printing Alarms, report (shift report), hardcopy
Transfer (upload/download)
● Transfer of configuration MPI/PROFIBUS DP, serial, USB, by means of external storage medium, automatic transfer recognition
Process coupling
● Connection to controller S5, S7-200, S7- 300/400, Win AC, SINUMERIK, SIMOTION, Allen Bradley (DF1), Mitsubishi (FX), Telemecanique (ADJUST), Modicon (Modbus), for further non-Siemens drivers, see section on "System interfaces"
● S7-1200 Yes
● S7-1500 No
● S7-200 Yes
— PPI (point-to-point) Yes
— PPI network No
— MPI Yes
— PROFIBUS DP Yes
— Ethernet No
● S7-300/400 Yes
— MPI Yes
— PROFIBUS DP Yes
— PROFINET No
● S5 Yes; only PROFIBUS DP
— serial No
— PROFIBUS DP Yes
● TI 505 No
● Allen Bradley (DF1) Yes
● Allen Bradley (DF485) Yes
● Mitsubishi (FX) Yes
● Telemechanique (ADJUST) No
● Telemecanique (Uni-Telway) Yes; Only in combination with WinCC flexible
● OMRON (LINK/Multilink) Yes
● Modicon (Modbus) Yes
Functions
● Key repeat No
● TAB sequence Yes
● Calculating functions Yes
● Animate Yes
● Menu tree editor Yes
● Unit switchover No
Service tools/configuration aids
● Clean screen Yes
● Touch calibration Yes
● Backup/restore Yes
● Simulation Yes
● Device switchover Yes
● Delta transfer Yes
● Monitoring function for battery and memory No
● Trace (operation archive) No
Expandability/openness
● Open Platform Program Yes
I/O / Options
I/O devices Printer
● MultiMediaCard Yes
Additional software components loadable Yes
Dimensions
Width of the housing front 243 mm
Height of housing front 212 mm
Mounting cutout/device depth (W x H x T) 229 mm x 196 mm / 45 mm device depth
Weights
Weight (without packaging) 1 kg
other
free hotline Yes
Warranty period 1 y
last modified: 25.09.2015
We Resell Full New Siemens HMI, Price is 10%-30% cheaper than other countries.
Series
Model
Description
SIMATIC Basic Panels (1st Generation)
6AV6647-0AA11-3AX0
KTP400 BASIC MONO PN,, KEY AND TOUCH, 4"
6AV6647-0AK11-3AX0
KTP400 BASIC COLOR PN, KEY AND TOUCH, 4"
6AV6647-0AB11-3AX0
KTP600 BASIC MONO PN, KEY AND TOUCH, 6"
6AV6647-0AC11-3AX0
KTP600 BASIC COLOR DP, KEY AND TOUCH, 6"
6AV6647-0AD11-3AX0
KTP600 BASIC COLOR PN, KEY AND TOUCH, 6"
6AV6647-0AE11-3AX0
KTP1000 BASIC COLOR DP, KEY AND TOUCH, 10"
6AV6647-0AF11-3AX0
KTP1000 BASIC COLOR PN, KEY AND TOUCH, 10"
6AV6647-0AH11-3AX0
KP300 BASIC MONO PN, KEY OPERATION, 3"
6AV6647-0AJ11-3AX0
KP400 BASIC COLOR PN, KEY OPERATION, 4"
6AV6647-0AG11-3AX0
TP1500 BASIC COLOR PN, TOUCH OPERATION, 15"
SIMATIC HMI Basic Panels
(2nd Generation)
6AV2123-2DB03-0AX0
KTP400 BASIC, KEY AND TOUCH OPERATION, 4"
6AV2123-2GA03-0AX0
KTP700 BASIC DP, KEY AND TOUCH OPERATION, 7"
6AV2123-2GB03-0AX0
KTP700 BASIC, KEY AND TOUCH OPERATION, 7"
6AV2123-2JB03-0AX0
KTP900 BASIC, KEY AND TOUCH OPERATION, 9"
6AV2123-2MA03-0AX0
KTP1200 BASIC DP, KEY AND TOUCH OPERATION, 12"
6AV2123-2MB03-0AX0
KTP1200 BASIC, KEY AND TOUCH OPERATION, 12"
Siemens Comfort Panel
6AV2124-2DC01-0AX0
KTP400 COMFORT,TOUCH AND KEY OPERATION,4"
6AV2124-1DC01-0AX0
KP400 COMFORT,KEY OPERATION,4"
6AV2124-0GC01-0AX0
TP700 COMFORT,TOUCH OPERATION,7"
6AV2124-1GC01-0AX0
KP700 COMFORT,KEY OPERATION,7"
6AV2124-0JC01-0AX0
TP900 COMFORT,TOUCH OPERATION,9"
6AV2124-1JC01-0AX0
KP900 COMFORT,KEY OPERATION,9"
6AV2124-0MC01-0AX0
TP1200 COMFORT,TOUCH OPERATION,12"
6AV2124-1MC01-0AX0
KP1200 COMFORT,KEY OPERATION,12"
6AV2124-0QC02-0AX0
TP1500 COMFORT,TOUCH OPERATION,15"
6AV2124-1QC02-0AX0
KP1500 COMFORT,KEY OPERATION,15"
6AV2124-0UC02-0AX0
TP1900 COMFORT,TOUCH OPERATION,19''
6AV2124-0XC02-0AX0
TP2200 COMFORT,TOUCH OPERATION,22"

Shipping DHL, UPS, Fedex, TNT, EMS, Post
Payment T/T, Western Union, Moneygram, Paypal
Minimum Order Quantity 1 pcs
Technical Support free
Programming Software free

6AV6642-0DC01-1AX1

  • Product Code: 6AV6642-0DC01-1AX1
  • Availability: In Stock
  • $541.15

  • Ex Tax: $541.15
