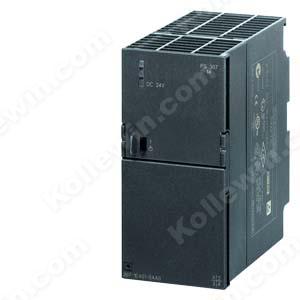

SITOP in SIMATIC S7-300-design 24 V, 5 A - PS 307
SIMATIC S7-300 STABILIZED POWER SUPPLY PS307 INPUT: 120/230 V AC OUTPUT: DC 24 V DC/5 A
Technical specifications
Product PS 307
Power supply, type 24 V/5 A
Input
Input 1-phase AC
Supply voltage / 1 / with AC / Rated value 120 V
Supply voltage / 2 / with AC / Rated value 230 V
Supply voltage
  • Note
Automatic range selection
Input voltage / 1 / with AC 85132 V
Input voltage / 2 / with AC 170264 V
Wide-range input No
Overvoltage resistance 2.3 × Vin rated, 1.3 ms
Mains buffering at Iout rated, min. 20 ms
Mains buffering at Vin = 93/187 V
Rated line frequency 50/60 Hz
Rated line range 47...63 Hz
Input current / at rated input voltage 120 V 2.3 A
Input current / at rated input voltage 230 V 1.2 A
Switch-on current limiting (+25 °C), max. 20 A
Duration of inrush current limiting / at 25 °C / maximum 3 ms
I²t, max. 1.2 A²·s
Built-in incoming fuse T 3,15 A/250 V (not accessible)
Protection in the mains power input (IEC 898) Recommended miniature circuit breaker: from 6 A characteristic C
Output
Output Controlled, isolated DC voltage
Rated voltage Vout DC 24 V
Total tolerance, static ± 3 %
Static mains compensation, approx. 0.1 %
Static load balancing, approx. 0.5 %
Residual ripple peak-peak, max. 50 mV
Residual ripple peak-peak, typ. 10 mV
Spikes peak-peak, max. (bandwidth: 20 MHz) 150 mV
Spikes peak-peak, typ. (bandwidth: 20 MHz) 20 mV
Product function / Output voltage adjustable No
Output voltage setting -
Status display Green LED for 24 V OK
On/off behavior No overshoot of Vout (soft start)
Startup delay, max. 2 s
Voltage rise, typ. 10 ms
Rated current value Iout rated 5 A
Current range 05 A
Active power supplied / typical 120 W
Short-term overload current / on short-circuiting during the start-up / typical 20 A
Duration of overloading capability for excess current / on short-circuiting during the start-up 100 ms
Short-term overload current / at short-circuit during operation / typical 20 A
Duration of overloading capability for excess current / at short-circuit during operation 100 ms
Parallel switching for enhanced performance Yes
Efficiency
Efficiency at Vout rated, Iout rated, approx. 87 %
Power loss at Vout rated, Iout rated, approx. 18 W
Closed-loop control
Dynamic mains compensation (Vin rated ±15 %), max. 0.1 %
Dynamic load smoothing (Iout: 50/100/50 %), Uout ± typ. 1 %
Load step setting time 50 to 100%, typ. 0.3 ms
Load step setting time 100 to 50%, typ. 0.3 ms
Protection and monitoring
Output overvoltage protection Additional control loop, shutdown at < 28.8 V, automatic restart
Current limitation 5.56.5 A
Property of the output / Short-circuit proof Yes
Short-circuit protection Electronic shutdown, automatic restart
Enduring short circuit current / RMS value / maximum 7 A
Safety
Primary/secondary isolation Yes
Galvanic isolation Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178
Protection class Class I
Leakage current / maximum 3.5 mA
Leakage current / typical 0.5 mA
CE mark Yes
UL/CSA approval Yes
UL/cUL (CSA) approval cULus-Listed (UL 508, CSA C22.2 No. 142), File E143289
Explosion protection ATEX (EX) II 3G Ex nA II T4; cULus (ISA 12.12.01, CSA C22.2 No.213) Class I, Div. 2, Group ABCD, T4, File E330455
FM approval Class I, Div. 2, Group ABCD, T4
CB approval No
Marine approval In S7-300 system
Degree of protection (EN 60529) IP20
EMC
Emitted interference EN 55022 Class B
Supply harmonics limitation EN 61000-3-2
Noise immunity EN 61000-6-2
Operating data
Ambient temperature / during operation 060 °C
  • Note
with natural convection
Ambient temperature / during transport -40+85 °C
Ambient temperature / during storage -40+85 °C
Humidity class according to EN 60721 Climate class 3K3, no condensation
Mechanics
Connection technology screw-type terminals
Connections / Supply input L, N, PE: 1 screw terminal each for 0.5 ... 2.5 mm² single-core/finely stranded
Connections / Output L+, M: 3 screw terminals each for 0.5 ... 2.5 mm²
Connections / Auxiliary -
Width / of the enclosure 60 mm
Height / of the enclosure 125 mm
Depth / of the enclosure 120 mm
Installation width 60 mm
Mounting height 205 mm
Weight, approx. 0.6 kg
Product property / of the enclosure / housing for side-by-side mounting Yes
Mounting type / wall mounting No
Mounting type / Standard rail mounting No
Mounting type / S7 rail mounting Yes
Installation Can be mounted onto S7 rail
Mechanical accessories Mounting adapter for standard mounting rail (6EP1971-1BA00)
Other information Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)
