Model |

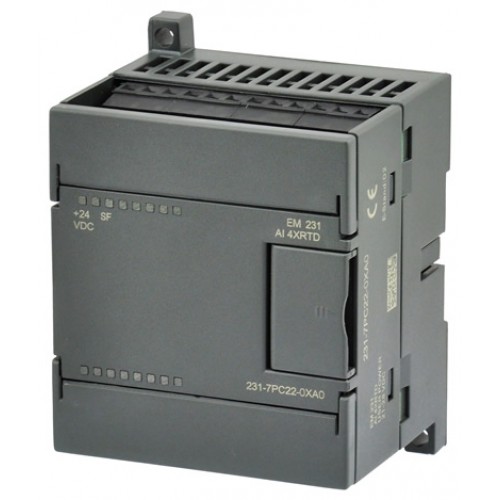

EM231 4 inputs,RTD |
|
Product Description |
4AI, RTD temperature measurement modules, Resolution:16bits; Optical isolation; High immunity ;stable |
|
From bus current consumption |
45mA |
|
From L+ current consumption |
20mA |
|
Power loss |
1W |
|
Number of analog inputs |
4 |
|
Input type· |
Module ground referenced RTD |
|
Common-mode rejection |
>120dB@120V AC |
|
Wire loop resistance(Max) |
20 Ω |
|
Module update time |
405ms |
|
Data word format |
Resistance:0~+27648 Ω |
|
Input range |
RTD: Pt100,Pt200,Pt500,Pt1000,Pt10000,Ni100 Ni120,Ni1000,Cu(9.035) Resistance: 150Ω, 300Ω,600Ω |
|
Measuring principle |
Sigma→delta |
|
Resolution |
15+1 Sign bit |
|
Basic error |
0.1%FS |
|
Isolation (field to logic) |
>500V |
|
24VDC supply voltage range |
20.4~28.8V DC |
|
Dimensions(W x H x D)(mm) |
71.2×80×62 |
|
Order Number |
6ES7231-7PC22-0XA0 |
| We produce these substitute S7-200,300,Profibus Products. | ||||||
| >>>>Can be produced with your brand and model number.<<<<< | ||||||
| Full replace, 40%-90% Cheaper Than Original | Quality and Reliable, Long Life, Sales Since Year 2002 | |||||
| S7-300 Front Connector | 6ES7392-1AJ00-0AA0 | 20 Pin | S7-200 CPU |
6ES7214-1AD23-0XB0 | 14 DI, 10 DO | |
| 6ES7392-1AM00-0AA0 | 40 Pin | 6ES7214-1BD23-0XB0 | 14 DI, 10 Relay | |||
| S7-300 Rack | 6ES7390-1AF30-0AA0 | 530mm | 6ES7216-2AD23-0XB0 | 24 DI,16 DO | ||
| 6ES7390-1AJ30-0AA0 | 830mm | 6ES7216-2BD23-0XB0 | 24 DI,16 Relay | |||
| 6ES7390-1AB60-0AA0 | 160mm | S7-200 Digital | 6ES7221-1BF22-0XA0 | 8 DI | ||
| 6ES7390-1AE80-0AA0 | 482mm | 6ES7221-1BH22-0XA0 | 16 DI | |||
| 6ES7390-1BC00-0AA0 | 2000mm | 6ES7221-1BL22-0XA0 | 32 DI | |||
| 6ES7195-1GA00-0XA0 | 483mm | 6ES7222-1BF22-0XA0 | 8 DO | |||
| 6ES7195-1GF30-0XA0 | 530mm | 6ES7222-1HF22-0XA0 | 8 Relay | |||
| 6ES7195-1GG30-0XA0 | 620mm | 6ES7222-1BH22-0XA0 | 16 DO | |||
| 6ES7195-1GC00-0XA0 | 2000mm | 6ES7222-1HH22-0XA0 | 16 Relay | |||
| S7-400 Rack | 6ES7492-1AL00-0AA0 | 48 Pin | 6ES7222-1BL22-0XA0 | 32 DO | ||
| PS307 | 6ES7 307-1EA00-0AA0 | 24V 5A | 6ES7223-1BF22-0XA0 | 4 DI, 4 DO | ||
| 6ES7 307-1EA01-0AA0 | 24V 5A | 6ES7223-1HF22-0XA0 | 4 DI,4 Relay | |||
| 6ES7 307-1KA01-0AA0 | 24V 10A | 6ES7223-1BH22-0XA0 | 8 DI,8 DO | |||
| 6ES7 307-1KA02-0AA0 | 24V 10A | 6ES7223-1PH22-0XA0 | 8 DI,8 Relay | |||
| PC Adapter /USB | 6ES7972-0CB20-0XA0 | USB-DP,MPI,PPI | 6ES7223-1BL22-0XA0 | 16 DI,16 DO | ||
| 6GK1571-0BA00-0AA0 | USB-DP,MPI,PPI | 6ES7223-1PL22-0XA0 | 16 DI,16 Relay | |||
| 6ES7972-0CA23-0XA0 | RS232-DP,MPI,PPI | S7-200 Analog |
6ES7231-0HC22-0XA0 | 4 AI | ||
| CP5611, CP5512 | 6GK1561-1AA00 | PCI-DP,MPI,PPI | 6ES7231-0HF22-0XA0 | 8 AI | ||
| 6GK15611-1AA01 | PCI-DP,MPI,PPI | 6ES7232-0HB22-0XA0 | 2 AO | |||
| 6GK1551-2AA00 | PCMCIA | 6ES7232-0HD22-0XA0 | 4 AO | |||
| CP5512 Express Card | Express | 6ES7235-0KD22-0XA0 | 4 AI, 1 AO | |||
| Profibus Connector | 6ES7972-0BA12-0XA0 | 90 Degree | 6ES7231-7PB22-0XA0 | 2 AI RTD | ||
| 6ES7972-0BB12-0XA0 | 90 Degree,PG | 6ES7231-7PD22-0XA0 | 4AI TC | |||
| 6ES7972-0BA41-0XA0 | 35 Degree | 6ES7231-7PC22-0XA0 | 4AI RTD | |||
| 6ES7972-0BB41-0XA0 | 35 Degree,PG | 6ES7231-7PH22-0XA0 | 8 AI TC | |||
| 6ES7972-0BA42-0XA0 | 35 Degree | 6ES7231-7PF22-0XA0 | 8 AI TC | |||
| 6ES7972-0BB42-0XA0 | 35 Degree,PG | 6ES7231-7PL22-0XA0 | 16 AI TC | |||
| 6ES7972-0BA50-0XA0 | 90 Degree,Fast | 6ES7231-7HC22-0XA0 | 4 AI Energy | |||
| 6ES7972-0BB50-0XA0 | 90 Degree,Fast | S7-200 Commu | 6ES7291-8BA20-0XA0 | Battery | ||
| 6ES7972-0BA52-0XA0 | 90 Degree,Fast | 6ES7291-8GF23-0XA0 | 64K Memory | |||
| 6ES7972-0BB52-0XA0 | 90 Degree,Fast | 6ES7290-6AA20-0XA0 | I/O Module Cable | |||
| 6GK1500-0FC00 | 180 Degree,Fast | 6ES7277-0AA22-0XA0 | EM277 Profibus | |||
| 6GK1500-0FC10 | 180 Degree,Fast | 6ES7260-1AA00-0XA0 | IM 260 DP | |||
| 6GK1500-0EA02 | 180 Degree,Metal | 6ES7261-0AA22-0XA0 | IM 261 RTU | |||
| KW-DP90 | Diagnostic 90' | S7-300 Digital | 6ES7321-1BH02-0AA0 | 16 DI NPN | ||
| KW-DP91 | Isolationed 90' | 6ES7321-1BH50-0AA0 | 16 DI PNP | |||
| Profibus Cable | 6XV1830-0EH10 | 2 wire | 6ES7321-1FH00-0AA0 | 16 DI AC | ||
| 6XV1830-3EH10 | TRAILING | 6ES7321-1BL00-0AA0 | 32 DI | |||
| Profinet | 6XV1840-2AH10 | 2X2, Cable | 6ES7322-1BF01-0AA0 | 8 DO | ||
| S7-200 Cable | 6ES7 901-3CB30-0XA0 | PC-PPI | 6ES7322-1BH01-0AA0 | 16 DO | ||
| 6ES7 901-3DB30-0XA0 | USB-PPI | 6ES7322-1HH01-0AA0 | 16 Relay | |||
| LOGO! Cable | 6ED1057-1AA00-0BA0 | LOGO!PC-CABLE | 6ES7322-1BL00-0AA0 | 32 DO | ||
| 6ED1057-1AA01-0BA0 | LOGO!USB-CABLE | 6ES7323-1BL00-0AA0 | 16 DI,16 DO | |||
| S5 Cable | 6ES5 734-1BD20 | PC/TTY | S7-300 Analog | 6ES7331-1KF02-0AB0 | 8 AI 13bit | |
| MPI Cable | 6ES7 901-0BF00-0AA0. | MPI | 6ES7331-7KF02-0AB0 | 8 AI 16bit | ||
| RS232 cable | 6ES7 901-1BF00-0XA0 | RS232 | 6ES7331-7PF01-0AB0 | 8 AI RTD | ||
| OP cable | 6XV1 440-2KH32 | OP programming | 6ES7331-7PF11-0AB0 | 8 AI TC | ||
| Ethernet-300 | KW-300-ETH | ETH to MPI,DP | 6ES7332-5HD01-0AB0 | 4 AO | ||
| Ethernet-200 | KW-200-ETH | ETH to PPI | 6ES7332-5HF00-0AB0 | 8 AO | ||
| Ethernet-300 | KW-300-ETH-Adapter | ETH to MPI,DP | 6ES7335-7HG02-0AB0 | 4 AI, 4 AO Counter | ||
| Ethernet-200 | KW-200-ETH-Adapter | ETH to PPI | S7-300 Commu | 6ES7153-3MB00-0XB0 | Modbus-TCP | |
| Wifi-300 | KW-300-WIFI | Wifi to MPI,DP | 6ES7153-1AA03-0XB0 | Profibus Remote IO | ||
| Wifi-200 | KW-200-WIFI | Wifi to PPI | 6ES7341-1CH02-0AE0 | RS485/422 | ||
| Shipping | DHL, UPS, Fedex, TNT, EMS, Post |
| Payment | T/T, Western Union, Moneygram, Paypal |
| Minimum Order Quantity | 1 pcs |
| Technical Support | free |
| Programming Software | free |
