We produce Profibus Modbus converter

We produce such profibus interface and profibus cable, profibus connector since the year 2004.

80% profibus projects use our products in China.

Please contact us for more information about profibus module.

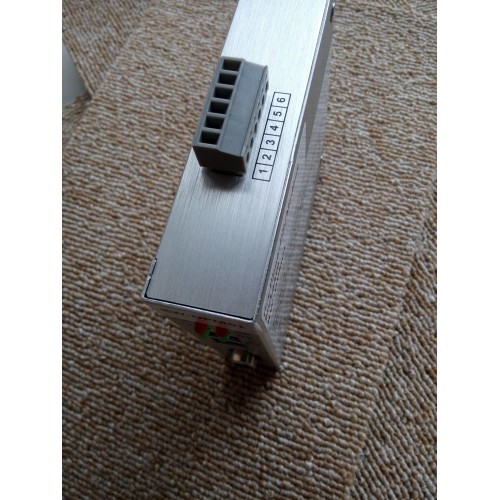

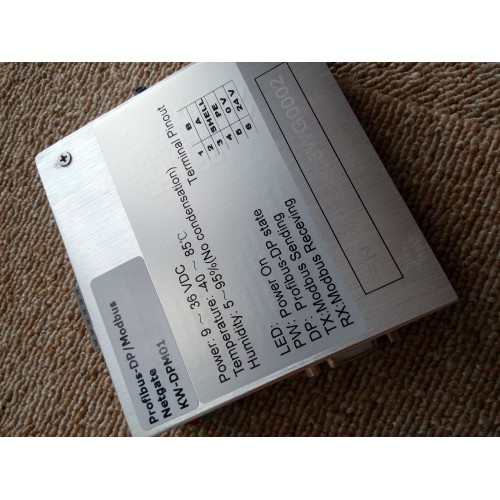

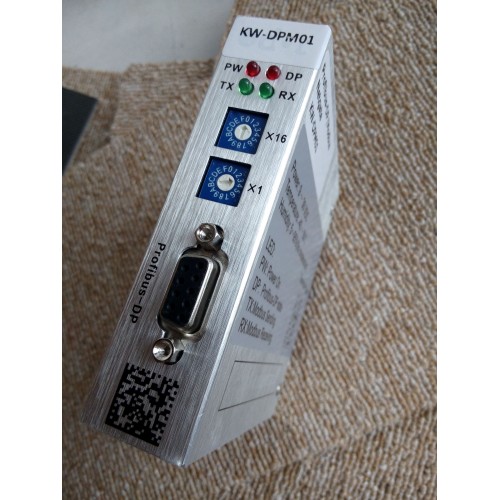

KW-DPM01 gateway is a PROFIBUS-DP turn to Modbus-RTU protocol converter. It can achieve the protocol conversion between PROFIBUS-DP and Modbus-RTU. Whoever has the RS232/485 interface Modbus RTU - protocol devices can make use of the product realization interconnection with field bus profibus-dp.Such as: With the Modbus RTU protocol interfaces of the inverter ,Motor start protection devices, Smart high-low voltage electrical appliances, Power measurement device, measuring equipment and intelligent field instrumentation and so on.

Ø If you are already familiar with Modbus-RTU protocol configuration software Siemens Step7 need to use this module, see the first chapter "Step7 use this module" sample.

Ø If you need ABB AC800F configuration software using the Control Builder F this module see the second Chapter "ABB Control Builder F using this module" sample.

Ø If you are not already familiar with Modbus-RTU protocol, see Chapter III: Modbus-RTU protocol profile, you only need to know that you are using function code can be.

Ø If you are new Profibus-DP and Modbus-RTU, please read through this manual.

Technical parameters

1, The installation method: 35mm rail mounting

2, DP communication speed: 9.6Kbps ~ 12Mbps

3, Supports Modbus Number of Sites: 32

4, Working voltage: DC 24V

5, The working environment temperature: -25 ~ 75 ℃

6, Storage temperature: -40 ~ 80 ℃

7, Relative humidity: ≤ 90% (non-condensing)

8, Protection: IP20
