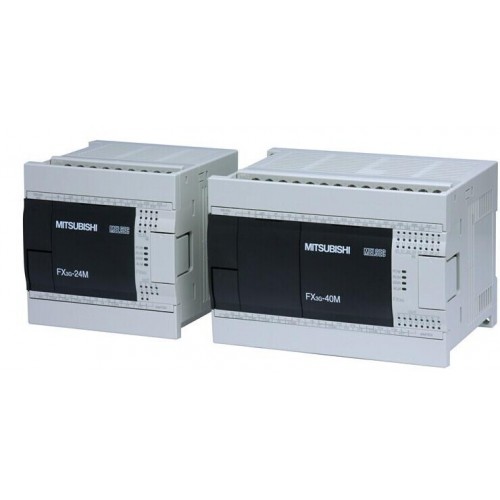

The FX3G is an introductory compact PLC that is the latest addition to the FX3 Series. With control of directly connected and networked I/O, connectivity to the FX3 Series ADP bus and new expansion boards makes the FX3G ideal for simple yet performance critical applications.

• 3rd generation compact PLC
• Highly flexible
• Dual bus architecture- 32k steps of internal program memory
• Integrated real-time clock
• Easy programming with large instruction set and table
  positioning configuration
• Built-in USB port for the programming communication function to enable high-speed communication at 12Mbps
• Two built-in variable analog potentiometers available for adjusting the timer set time
• Programming with GX Works2 or GX Works2 FX

Product Details

All in one CPU, power supply and I/O. Includes many upgraded features from the FX1N. Especially usage of the FX3 Series ADP bus system and new expansion boards (BD).

Instruction Times
Basic Instructions: 0.21µs / instruction (Contact Instruction)

Large Memory

32,000 steps of built-in program memory. EEPROM memory cassette
with loader function is available.

Large Device Memory

Auxiliary Relays: 7,680 points

Timers: 320 points

Counters: 235 points

Data Registers: 8,000 points

Extension Registers: 24,000 points

Extension File Registers: 24,000 points
