USB/SNP interface GE 90 series PLC programming cable,3 meters,with communication indicator,the largest communication distance of up to 1.5 kilometers.




Introduction

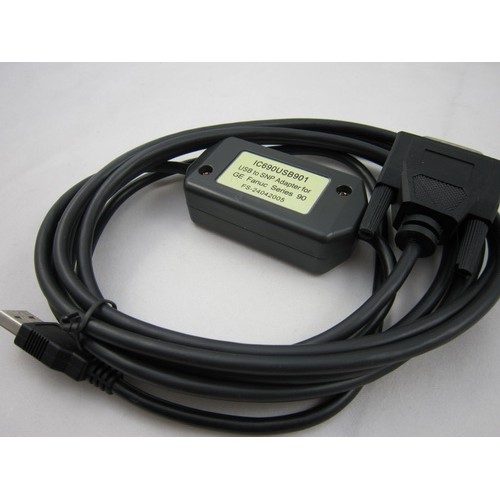

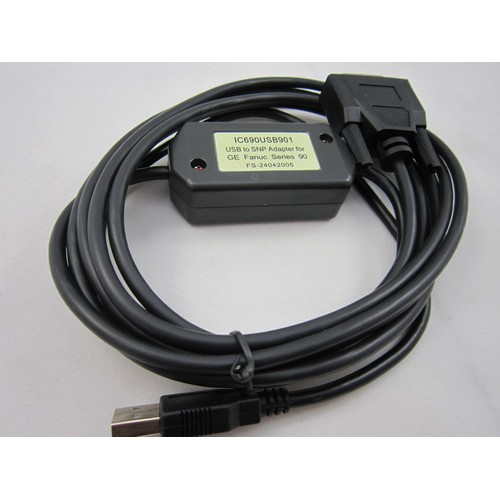

IC690USB901 programming cable simulate USB port as traditional serial port (usually COM3), which enables existing programming software (CIMPLICITY ME)  to communicate through simulated traditional port and PLC devices. In this product, the power supply is provided by USB port, not by the PLC programming port, two-color LED on the adapter indicating the status of sending and receiving data, IC690USB901 cable programming applies to GE 90 Series PLC, the largest communications support to reach 1.5 kilometers away.

IC690USB901

Characteristic and technical specification:

● The programming software release that supports IC690USB901: CIMPLICITY ME V5.0 and above
● The standard that completely compatible USB V1.1 and USB CDC V1.1
● USB main line supply power and current sinking approximately 50mA
● Baud rate: the 300bps~1Mbps standard baud rate adapts automatically
● Supports the UART data format: Data position: 7th, 8, stop the position: 1st, 2, verification position: odd/even/no parity
● Support long distance correspondence, biggest signal distance 1.5 kilometers (when 19200bps)
● Each PC only supports a USB programming electric cable
● Operating temperature: - 20~+75℃
● Cable length: 3 meters, color: Black



System requirement

Please make sure your PC is IBM PC compatible and has the following
system requirements before using the USB programming cable.
● Intel is compatible with 586DX4-100MHz CPU or higher
● A standard USB port (4-pin A plug)
● Operating system is Windows2000 or Windows XP

Setting of CIMPLICITY ME V5.0:

In the window of “CIMPLICITY ME”,you need to set the “Physical Port” of the “Target” in accordance with the new simulated COM port in the “Device Manager”.

Long distance communication:

The maximum signal distance between IC690USB901 programming electric cable and the PLC may amount to 1.5 km (when 19200bps). The user must self-extend electric cable through the following chart and the order wire uses the cross-sectional area is the 0.22mm2 above shielded twisted pair. When the distance is longer than 1500 meters may install the RS422 repeater (the model: E485GA) in the line to lengthen the signal distance.

note: Cannot lengthen the USB connection the electric cable.



The quality is guaranteed.It's tested before shippment.Not made by GE,OEM product as the replacement.

We produce PLC, HMI programming cables for almost all brands.
Alternative, Substitutes only about 10% price as original Quality and Reliable, Long Life, Sales Since Year 2002
Siemens PLC Programming Cable USB-PPI OMRON PLC Programming Cable USB-CP1H T-VERTER PLC HMI Cable PC-TP02
USB-PPI+ USB-CIF02 USB-TP02
PC-PPI CQM1-CIF02 TP-302MC
6ES7901-3DB30-0XA0 USB-XW2Z-200S-CV PC-TP03
6ES7901-3CB30-0XA0 USB-XW2Z-200S-VH USB-TP03
6ES7972-0CB20-0XA0 USB-XW2Z-200S-V USB-TP-302PC
6GK1571-0BA00-0AA0 USB-CN226 TP-302MC
6ES7972-0CA23-0XA0 CS1W-CN226 Proface HMI Cable USB- GPW-CB02
PC-TTY CS1W-CN626 GPW-CB02
6ES5 734-1BD20 PC-CQM1H GPW-CB03
6ES7901-1BF00-0XA0 USB-CQM1H USB GPW-CB03
6ES7901-0BF00-0AA0 XW2Z-200S-CV GP-FX
6XV1440-2KH32 XW2Z-200S-VH GP-FP0
USB-OP XW2Z-200S-V GP-Q
LOGO!USB-CABLE CS1W-CIF31 GP-DVP
6ED1057-1AA01-0BA0 USB-CIF31 GP-FBS
LOGO!PC-CABLE XW2Z-200S-V GP-S7-200
6ED1057-1AA00-0BA0 XW2Z-200T GP-CPM1A
USB-TP-RS485 XW2Z-500T GP2000-FX2N
Allen-Bradley PLC Programming Cable 1747-PIC XW2Z-200P-V CA3-USBCB-01
1747-UIC XW2Z-200P CA3-CBLFX-01
USB-1747-CP3 XW2Z-002T CA3-CBLQ-01
USB-1761-CBL-PM02 NB7-FX CA3-CBLFP-01
1761-CBL-PM02 NB7-OMRON GP3000-DVP
1747-CP3 FANUC PLC Programming Cable IC690ACC901 GP300-S7200
2711-NC13 IC690USB901 GP3000-FBS
1784-CP10 KEYENCE USB-KV CA3-CBLSYS-01
1784-CP11 FUJI PLC Cable USB-CNV3 Weintek HMI Cable USB-MT500
2711-NC21 USB-UG00C-T PC-MT500
1761-CBL-HM02 NN-CNV3 MT500-FX
1761-CBL-AP00 Delta PLC Programming Cable USBACAB230 MT500-S7-200
1761-CBL-AM00 DVPCAB215 MT500-FBS
1772-TC DOP-DVP MT500-FP0
1747-C13 DOP-FX 5M MT500-CPM1A
1786-CP DOP-FX MT500-AFPX
CP3-PM02 DOP-FX MT500-CP1H
1756-CP3 USB-DOP MT500-DVP
2711-NC14 DOP-USB MT500-S7300
2711-NC17 PC-DOP MT6000-S7300
2711-NC11 DOP-FP0 MT8000-S7300
2711-CBL-HM00 DOP-FBS USB-MT6000i
Schneider PLC Programming Cable TSXPCX1031 DOP-FP0 MT6000-FX
TSXPCX3030 DOP-S7-200 MT6000-S7200
TSXPCU1030 DOP-FPX MT6000-FBS
TSX08PRGCAB DVP-GP MT6000-DVP
XBT-Z968 USB-DVP MT6000-FP0
XBTZ915 DVPACAB2A30 MT6000-AFPX
XBTZG935 DVPACAB630 MT6000-Q
TSXCUSB485 TP04-FX MT6000-CPM1A
MITSUBISHI PLC Programming Cable USB-SC09 DVPACAB530 MT6000-NB
USB-SC09-FX DVPACAB515 TK6070-FX
SC09 LG PLC Programming Cable PC-LG TK6070-S7200
SC-10 PC-XGB TK6070-FBS
SC-11 USB-LG TK6070-DVP
FX-USB-AW NAIS PLC Programming Cable USB-FP-X TK6070-FP0
FX-232AWC-H USB-AFC8513 TK6070-AFPX
USB-QC30R2 USB-AFC8503 USB-MD204
QC30R2 USB-FP1 PC-MD204
USB-FX232-CAB-1 AFC8503 MD204-S7-200
USB- AC30R2-9SS AFC8513 MD204-FBS
FX-20P-CAB0 USB-GT32 MD204-FX
FX-20P-CAB AFP5523 MD204-DVP
FX-20P-CADP AFC8523 MD204-FP0
FX-422CAB0 AIGT8162 TK6012-FX
F2-232CAB-1 AIGT8192 MT6056-FX
FX-232-CAB-1 AIP81842 Kinco HMI Cable MT4000/5000-FX
FX-50DU-CAB0 AIGT8152 MT4000/5000-FBS
FX-40DU-CAB USB8550 MT4000/5000-DVP
FX9GT-CAB0 USB8551 MT4000/5000-S7200
AC30R2-9SS AFP8550 MT4000/5000-FP0
AC30R4-25P AFP8551 MT4000/5000-AFPX
GT01-C30R4-8P AFP5523 MT4000/5000-Q
GT01-C30R2-6P Hitachi PLC EH-VCB02 MT4000/5000-CPM1A
GT01-C30R4-25P PC-HIDIC MT4000/5000-XC
USB-GT01-C30R2-6P IDEC PLC Programming PC-FC4A USB-MT4000/5000
GT01-C30R2-9S USB-FC4A MT4000-S7300
GT10-C30R4-8P VIGOR PLC Programming Cable MWPC-200 MCGS HMI Cable USB-TPC
GT10-C50R4-8P MWPC25-200 TPC-FX
FX2N-485-BD VB-USB-200 TPC-S7200
FX2N-232-BD USB-VIGOR TPC-FBS
FX2N-422-BD Emerson PLC Programming SL-B2053RASL1 TPC-DVP
FX1N-485-BD USB-SLB2053RASL TPC-FP0
FX1N-232-BD KOYO9 PLC Cable USB-Koyo PLC TPC-AFPX
FX1N-422-BD PC-SU PLC TPC-Q
FX3U-485BD Hakko PLC Cable V6-CP TPC-XC
FX3U-422-BD USB-V6-CP TPC-S7300
FX3U-232BD HITECH HMI Cable USB-PWS6600 TPC-CPM1A
FX3U-CNV-BD PC-PWS6600 FATEK PLC Cable USB-FBS-232P0
GT09-C20USB-5P PWS6600-FX FBS-232P0-9F
FX9GT-CAB0 PC-HITECH USB-FB-232P0-150
SIMATIC HMI 6XV1 440-2KH32 PWS6600-S7200 Provide programming software free

Shipping DHL, UPS, Fedex, TNT, EMS, Post
Payment T/T, Western Union, Moneygram, Paypal
Minimum Order Quantity 1 pcs
Technical Support free
Programming Software free

IC690USB901

  • Product Code: IC690USB901
  • Availability: In Stock
  • $57.00

  • Ex Tax: $57.00
